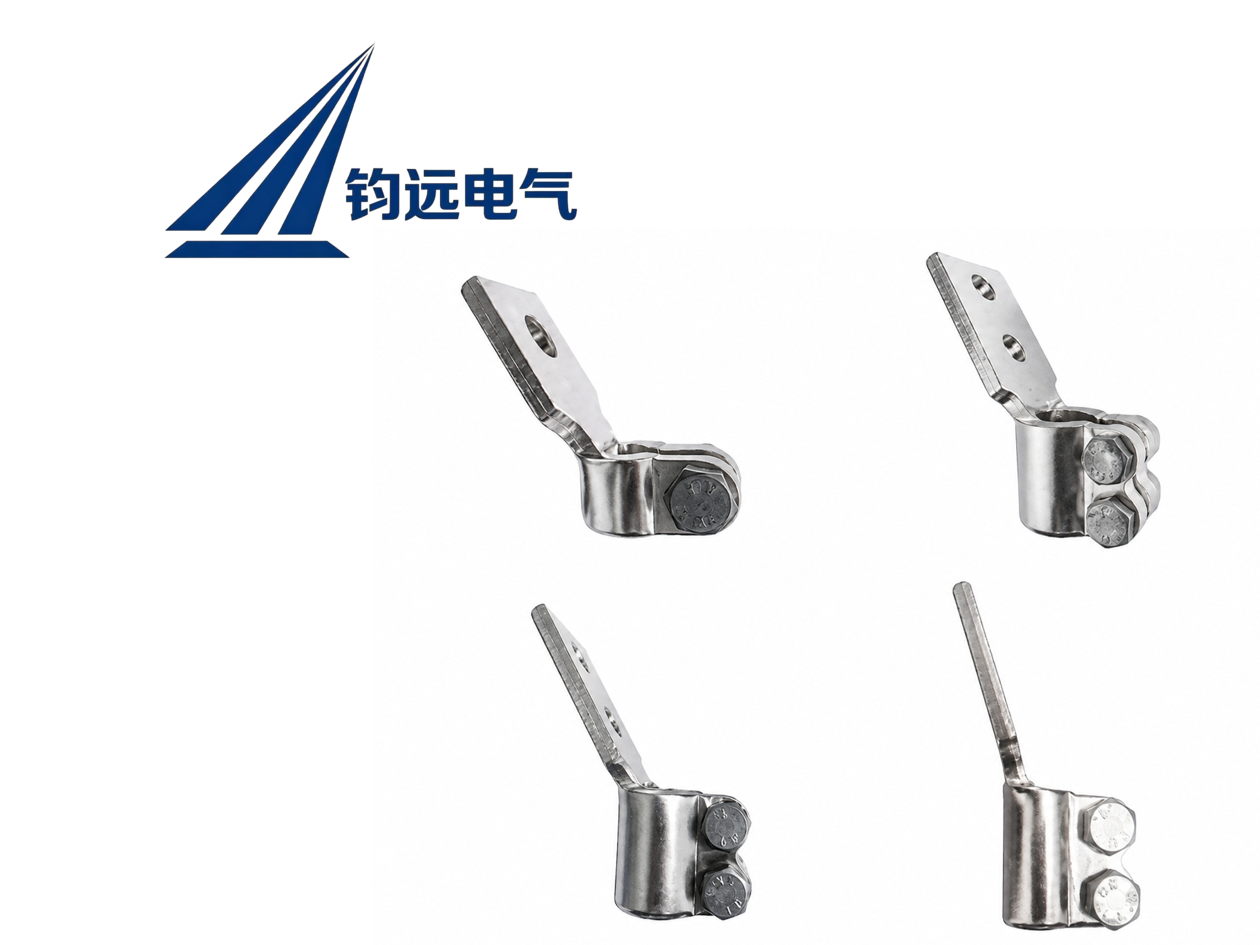

Copper 30-degree (Flat) Terminal

Product Description:

A transformer bushing is the terminal device that routes high- and low-voltage leads from inside the transformer to the outside of the tank. It must meet specified electrical strength and mechanical strength requirements. The voltage class of the winding connected to the bushing determines its insulation structure, while the operating current dictates the cross-section of the conductive parts and the design of the connection terminals.

Conditions and Performance:

Ambient temperature: -45℃~+55℃

Altitude: Standard type up to 1000m; reinforced and anti-pollution types suitable for 2000m~4000m.

Standard type is suitable for lightly polluted areas; anti-pollution type is for heavily polluted areas.

Installation: Vertical or Horizontal
